Description

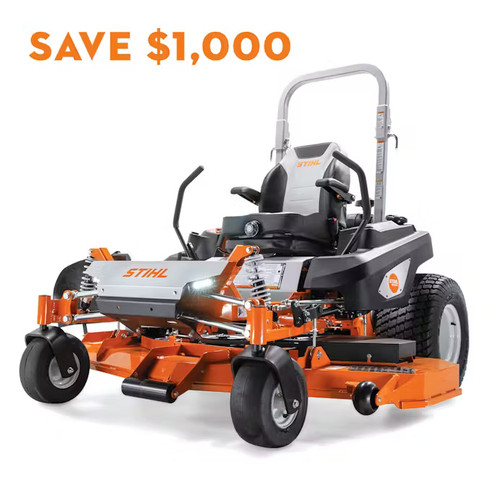

STIHL RZ 760 I Lawn Mower
Features
- Vanguard® Oil Guard™ System
- Commercial-Grade Hydro-Gear® ZT-4400 Transaxles
- Heavy-Duty 8” Cast Iron Greaseable Mower Deck Spindles
- Deluxe Seat with Armrests
Specifications
- HORSEPOWER: 28 hp
- FUEL SYSTEM: Electronic Fuel Injection (EFI)
- FUEL TANK CAPACITY: 11 gal.
- DISPLACEMENT: 810 cc
- TRANSAXLES: Hydro-Gear® ZT-4400
- FORWARD GROUND SPEED: 10 mph
- REVERSE GROUND SPEED: 5 mph
- DECK WIDTH: 60 in.
- MOWING HEIGHT RANGE: 1.5" - 5"
- DECK CONSTRUCTION: Fabricated from 10-gauge steel with a 10-gauge doubler in the spindle area and 1/2" reinforcement plates on the leading edge
- CUTTING HEIGHT OPTIONS: 13
- BLADES: 3 - MARBAIN® Hardened
- FRONT TIRES: 13 x 6.5-6
- REAR TIRES: 24 x 12-12
- WEIGHT: 1,406 lbs.
- POWER SOURCE: Gas
- ENGINE GOVERNOR: Mechanical
- LUBRICATION SYSTEM: Oil Guard™
- SPINDLE SHAFT DIAMETER: 1 in.
- SPINDLE BEARINGS: 2.5" x 1" Dual Ball Bearing
- SPINDLE HUBS: 7.9" Cast Iron & Greaseable
- USB AMPERAGE: 3.15 A
- FRONT SUSPENSION TRAVEL: 2.68 in.
- REAR SUSPENSION TRAVEL: 2.68 in.
Warranty & Support
- Chainsaw Safety and Maintenance - Video
- Product Instruction Manual (PDF)
- Product Safety Manual
- STIHL Limited Warranty
Safety Information
WARNING! Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products.
Note: STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.
